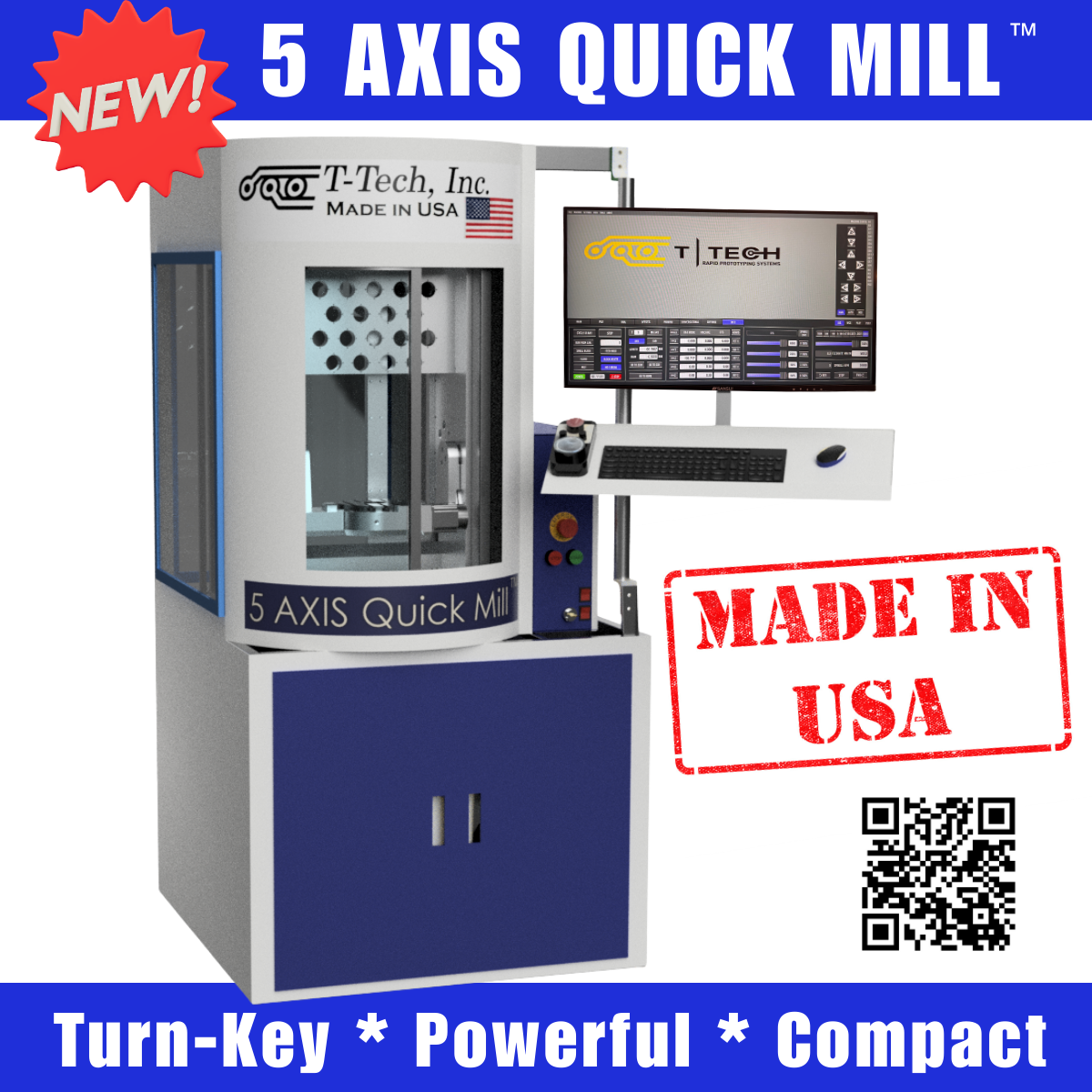

QM-H5-888 QUICK MILL 5 Axis – Made in USA
INCLUDES:
QM Mill Pro CAD CAM Post-Processor

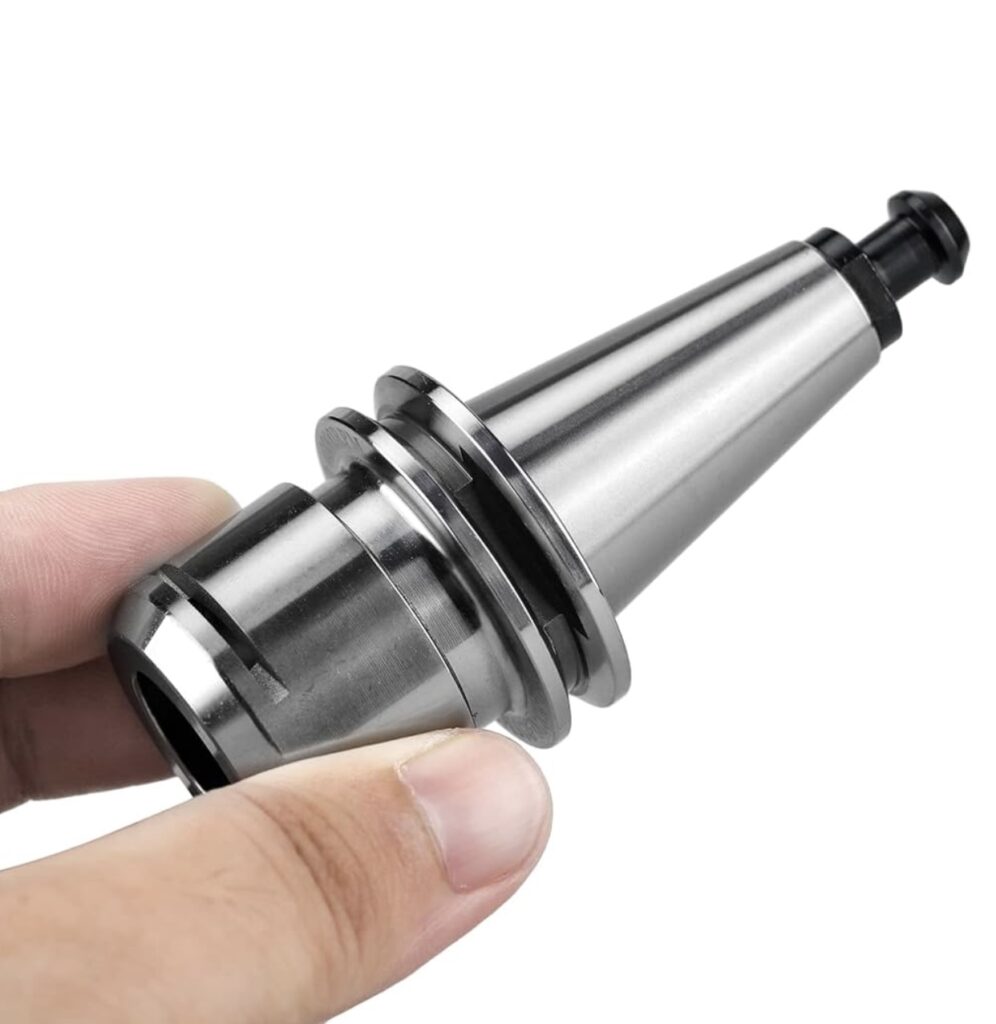

QM Tool Holder Kit – ISO20
QM Collet Kit – ER32
QM Startup Kit -Tools to make first part
QM Quick Service -Rapid Repairs
QM Training–2 Days via Web
220 Volt / Single Phase / 50/60Hz / 20 Amp Service
Integrated 2 gallon Coolant Tank + 8 gallon 125psi Compressor
Machine Weight: 500 pounds / Shipping Weight: 1,040 pounds
CLICK HERE PRICING AND PRODUCT SHEETS
FULL SPECS:

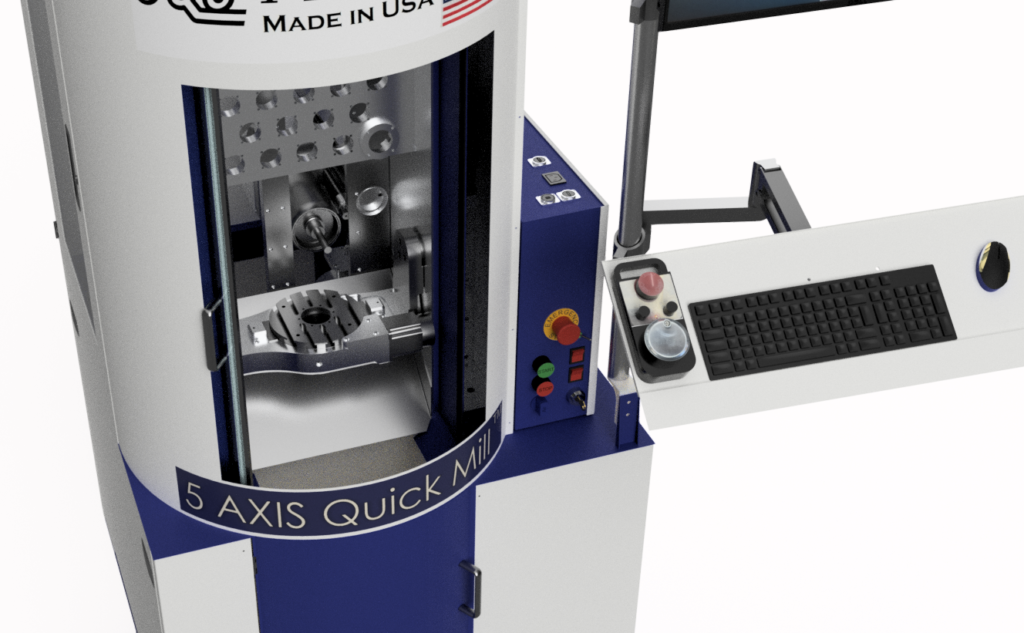

POWERFUL SELF-CONTAINED COMPACT SOLUTION
NEW from T-Tech 5 Axis QUICK MILL prototyping CNC for the the medical device, aerospace, mold tooling and trade school segments.
The 5 Axis Quick Mill™ has a large work area of 8” x 8” x 8” enabling a wide range of applications in Titanium, Tool Steel, Stainless Steel, Aluminum, Brass, Copper, Delrin, Lexan, Carbon Fiber, Green Ceramics and more. Equipped with advanced 5-axis servo-coordinated motion, a powerful 3-horsepower spindle that reaches 24,000 RPM, and a 21-tool automatic tool changer with true center point control, the 5 Axis Quick Mill is fully self-contained with coolant tank and onboard compressor. The 5 Axis Quick Mill is compatible with the popular cloud-based Fusion 360 platform and utilizes EIA standard G-Code and M-Codes for programming, making it adaptable to files from any CAD/CAM software. Designed to fit through a standard door, the 5 Axis Quick Mill is compact, approximately the size of a refrigerator.
